DIMENSIONS AND TECHNICAL SPECIFICATIONS OF - 413 LS |
񃬣
»ç¾ç¼ |

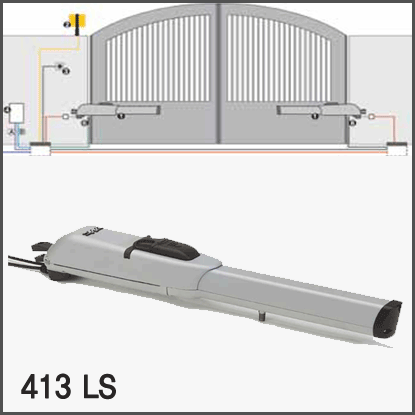

413 LS |
Power supply
|
230 Vac |
Power
|
250 W |
Current
|
1.1 A |
Thermal protection
|
140 ¡ÆC |
Thrust
|
200 daN |
Rod stroke
|
300 mm (350 mm without mechanical stops) |
Rod extension speed
|
1.6 cm/sec |
Leaf max. width (*)
|
2.5 m |
Type and frequency of use at 20 ¡ÆC
|
S3 - 35% |
Indicative minimum hourly cycles at 20 ¡ÆC
|
~30 |
![](../images/swing-gate/pimg/bg01.gif)
Operating ambient temperature
|
I-20 ¡ÆC to +55 ¡ÆC |
Weight of operator
|
6.5 kg |
Dimensions (L x D x H) in mm |
785 x 105 x 148 |
Protection class |
IP 44 |
Travel limit microswitches |
YES |
Opening and closing mechanical stops |
YES |
